※ The machine is initially set up at the factory. Please contact your reseller first before making any changes to the settings of the machine.
※ (CNC) Only carbide and diamond tools can be calibrated. Do not calibrate tools such as endmill and cutter.
※ (CNC) Be sure to unlock the pressure lock when calibrating the machine. Nose, tool and material can be damaged if the head is fixed or when the pressure lock is locked.
※ Calibrate the machine in the following order:
Tool calibration → Probe calibration → Laser focus calibration → Guide laser calibration → Correction → Focus pointer → Rotary clamp origin point → Tool–laser center calibration → Camera calibration.
※Use appropriate material for calibration. The machine’s warranty service does not cover mishandling of the machine resulting in damage or failure.
※ RECOMMENDED: Use a black anodized aluminum material.

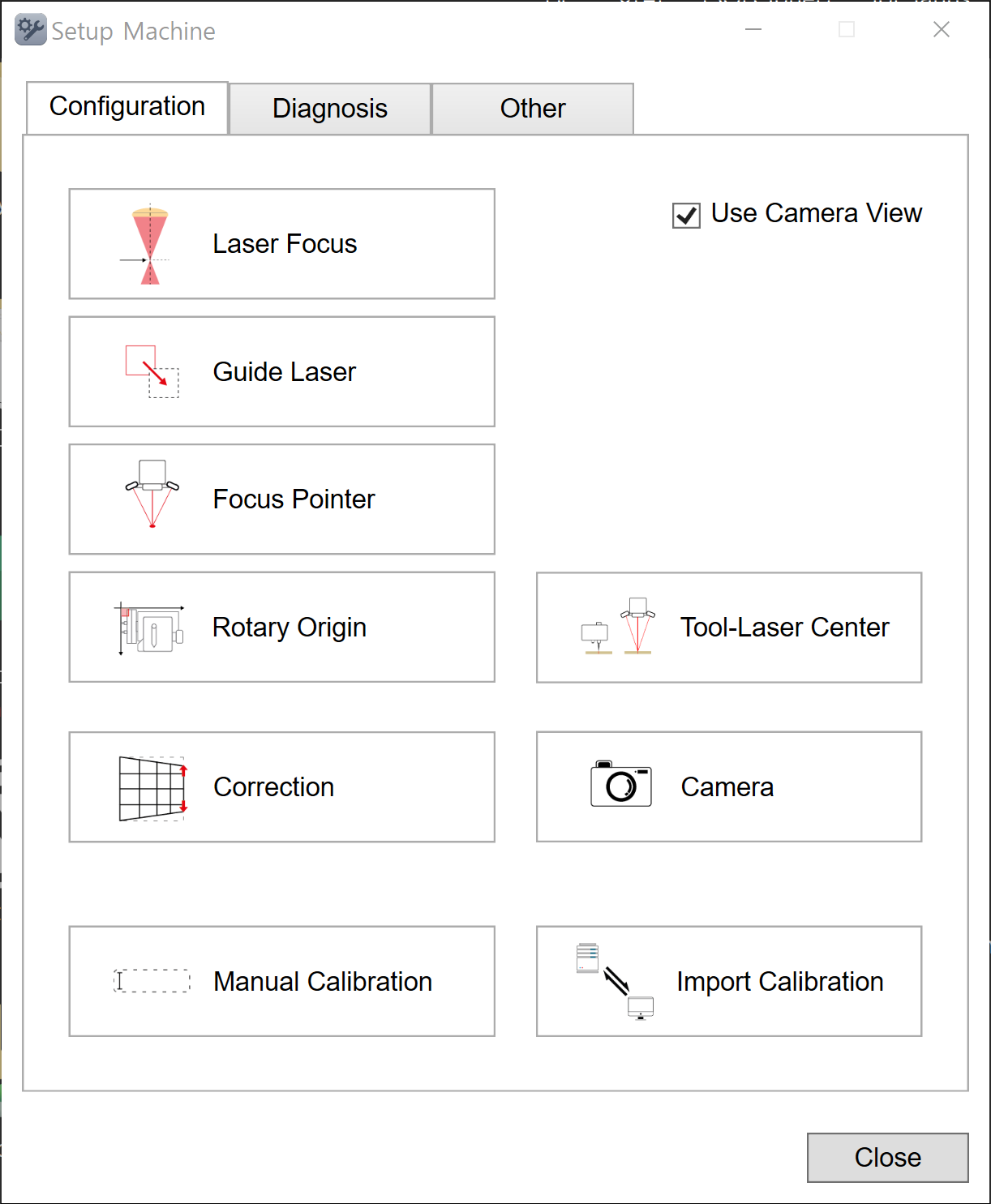

※ A separate program for Setup Machine is provided. Run the program first to calibrate the machine.**
- 1. Touch Sensor (Tool Calibration)
- 2. Probe Calibration
- 3. Laser focus calibration
- 4. Guide laser calibration
- 5. Correction
- 6. Focus pointer
- 7. Rotary origin
- 8. Flat origin
- 9. Rotary Clamp Origin point (Z axis)
- 10. Tool-laser center
- 11. Camera
- 12. Manual calibration
- 13. Import calibration
