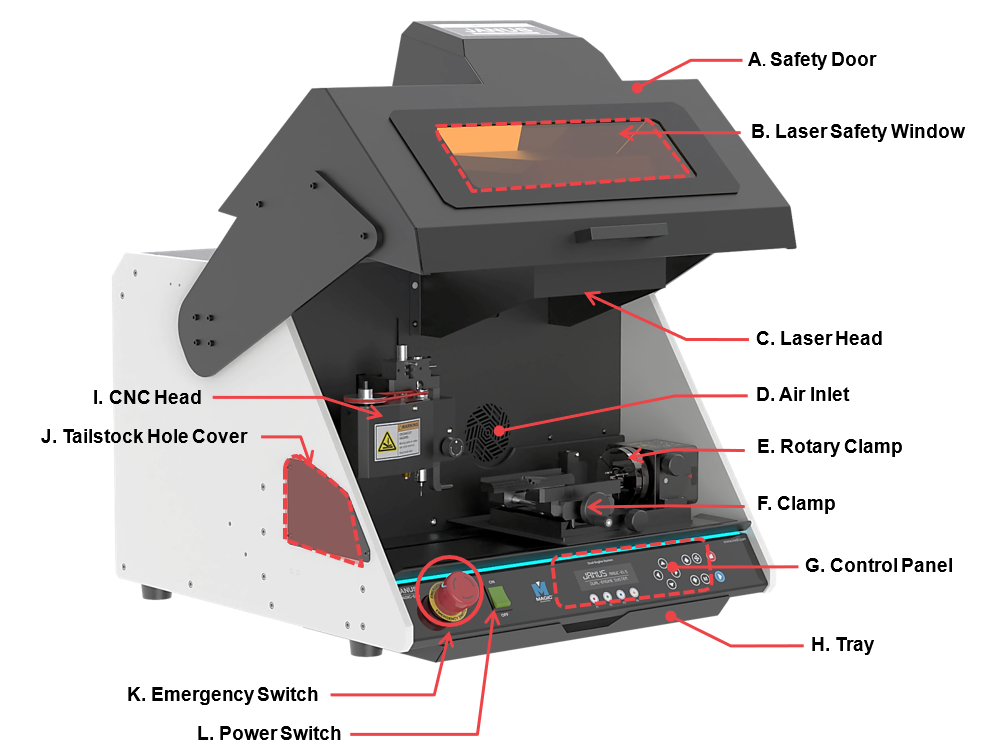

¶ Machine
¶ Head
¶ Clamp

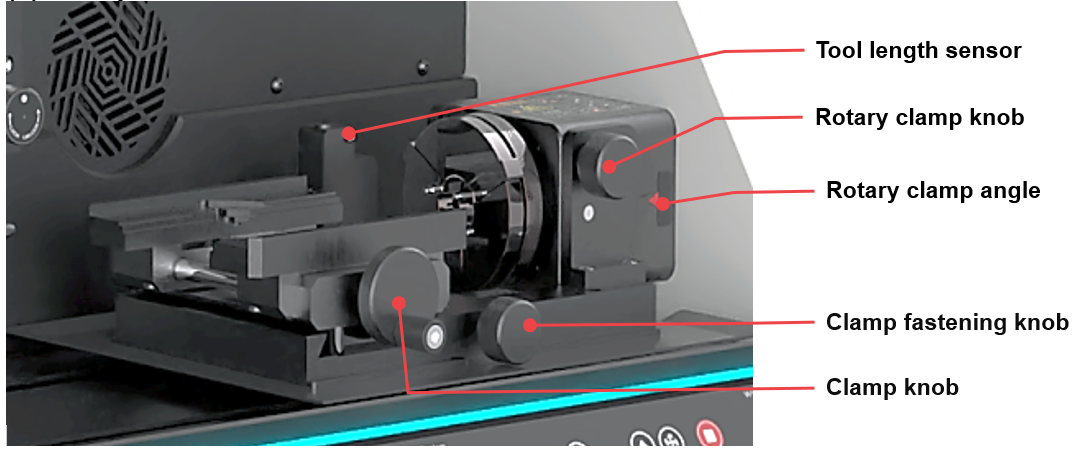

| Tool length sensor | Automatic tool length measurement sensor. |
| Rotary clamp knob | Knob for securing the rotary clamp at the desired angle. |

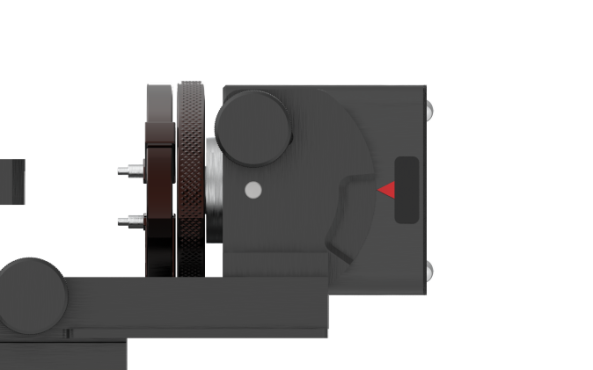

| Rotary clamp angle | Angle scale for the rotary clamp. |
| Clamp fastening knob | Knob for securing the clamp. |
| Clamp knob | Knob for fastening the material to the clamp. |

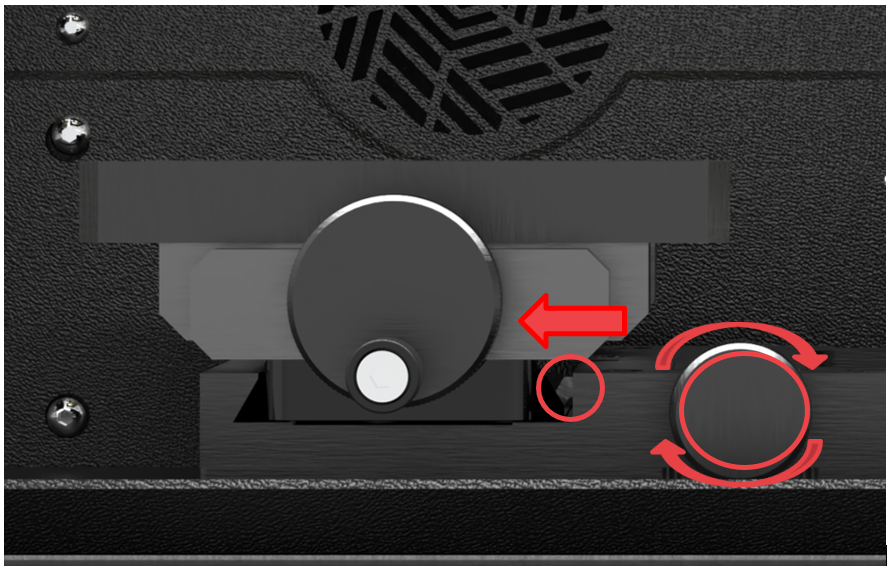

To secure the clamp, turn the clamp fastening knob. Turn it clockwise to secure, and counterclockwise to release.
Rotating the clamp fastening knob extends the push rod to the left, securing the clamp.

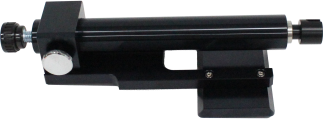

- 1. Multipurpose Clamp Descriptions for the multipurpose clamp
- 2. Rotary Clamp Descriptions for the rotary clamp
- 3. Cutting Clamp Descriptions for the cutting clamp
- 4. Flat clamp Descriptions for the flat clamp
- 5. Anti-curling clamp Descriptions for the anti-curling clamp
- 6. Pen jig Descriptions for the pen jig
¶ Keypad
¶ Menu
¶ Display
The display shows the status, functions, mode, and check messages. Icons are displayed differently depending on the selected function. The four buttons at the bottom represent different functions and each function vary depending on the selected mode.
- 1. Standby-Flat Descriptions for the display when the flat-standby mode
- 2. Standby–Rotary Descriptions for the display when the rotary-standby mode
- 3. Move Mode Descriptions for the display when the move mode
- 4. Check rotary clamp marking area Descriptions for the display when the check the rotary clamp's marking area
- 5. Engraving mode-CNC Descriptions for the display when the CNC engraving mode
- 6. Engraving mode-Laser Descriptions for the display when the laser engraving mode
- 7. Pause-CNC Descriptions for the display when the CNC pause mode
