| Status | ||
|---|---|---|
 |
Focus pointer | Laser pointer ON/OFF |
 |
Chip collector power | Chip collector ON/OFF: Icon does not appear when OFF |
 |
Send current position | Sends the current position coordinates. Not displayed when set to OFF. |
 |
Z-axis position | Z-axis Position: Material height |
 |
Spindle rotation speed | Displays the spindle rotation speed as a percentage (%). |
| Mode | ||
|---|---|---|
 |

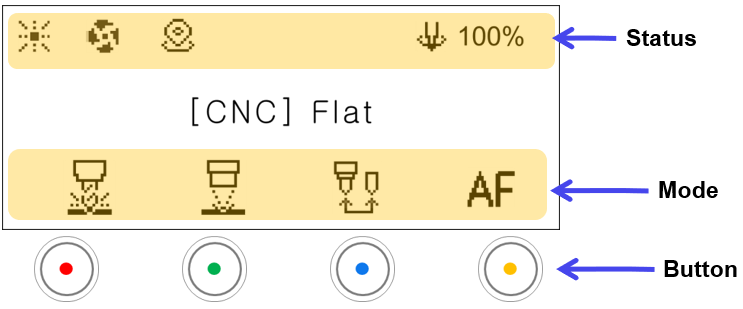

CNC Mode | From left to right [Cancel, CNC Flat, CNC ring outer diameter, CNC ring inner Diameter] modes. |
 |

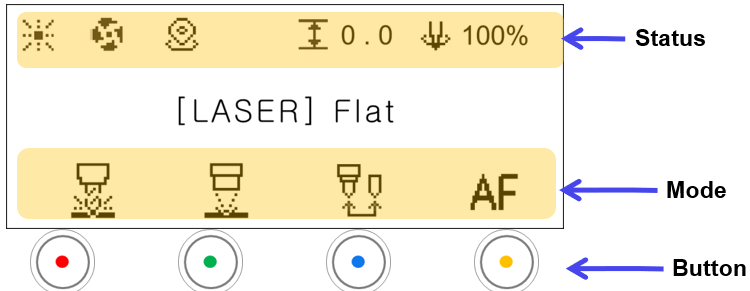

Laser Mode | From left to right Cancel, Laser Flat, Laser Rotary  |
 |
Tool change | Switches to tool change mode |
 |
Auto focus | Measures the material height and moves to the focus position. In CNC mode, the height is measured at the current tool position. In laser mode, the height is measured at the center position of the clamp. |
