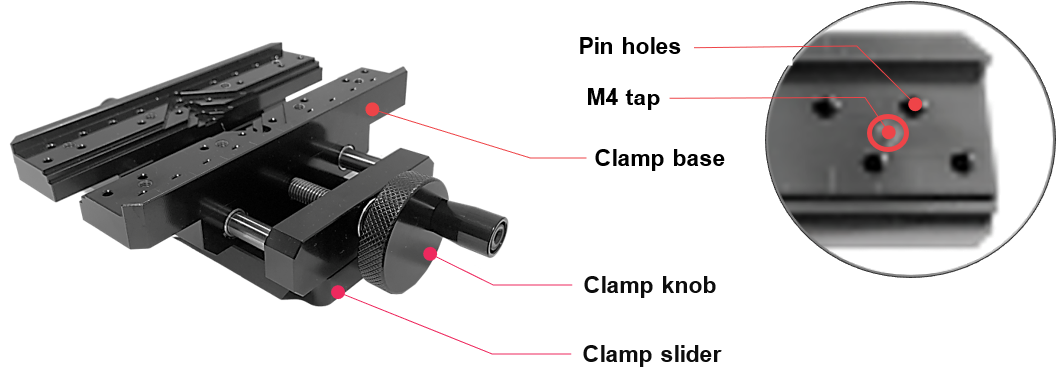

This single clamp alone makes engraving on various materials possible without the use of any additional clamps.
¶ How to secure the material in place

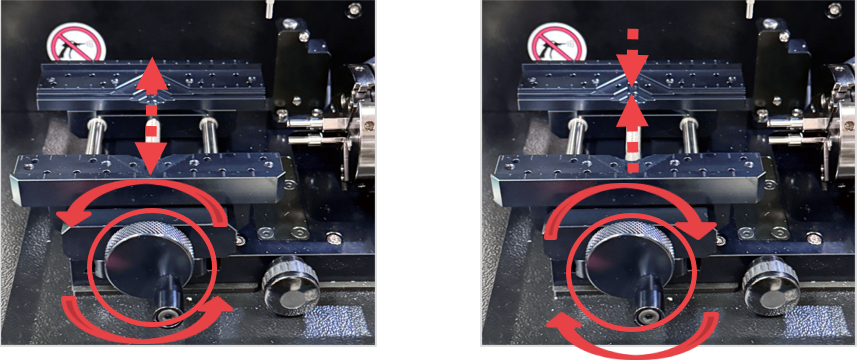

Use the clamp knob to hold the material in place. Turn the clamp knob clockwise to fasten the clamp, and counterclockwise to loosen or widen it.
Marks may be left on the material if fastened tightly.
¶ How to position the material

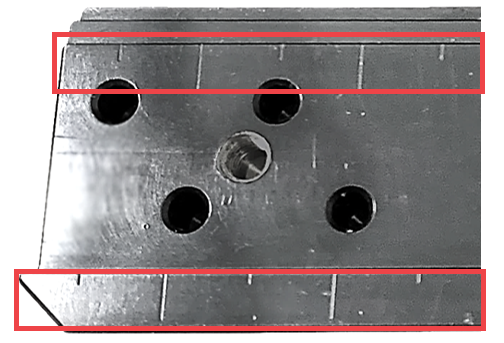

Use the vertical ruler bar as an alignment guide to help you position and align your material to the clamp with ease and accuracy. Properly place your material on the clamp then check the alignment.
- 1. Watch adapter CP-84
- 2. Bracelet adapter CP-85
- 3. Bar necklace adapter CP-166
- 4. Brick adapter CP-167, 167S
- 5. Curved tag adapter CP-182
