| A | Safety Door | Opens/closes the cover |
| B | Laser Safety Window | Protects the eyes from being exposed to laser light ※Wavelength protection: 1064nm/Optical density: OD6 |
| C | Laser Head | Emits the laser beam for marking and engraving
 ※Do not stare at specular or diffuse laser reflections. Doing so may cause permanent eye injury or blindness. |
| D | Air Inlet | Draws in fumes and particulate matter generated during marking |
| E | Rotary Clamp | Rotary clamp for holding cylindrical materials |
| F | Clamp | Clamp for holding the material in place |
| G | Control Panel | Controls the power switch and provides manual controls for marking operations |
| H | Tray | Lower Tray |
| I | CNC Head | CNC head for holding cutting tools and engraving tips |
| J | Tailstock Hole Cover | Supports the material and helps hold it in place during rotary engraving |
| K | Emergency Switch | Stops the machine during emergency |
| L | Power Switch | Turn on/off the power switch |

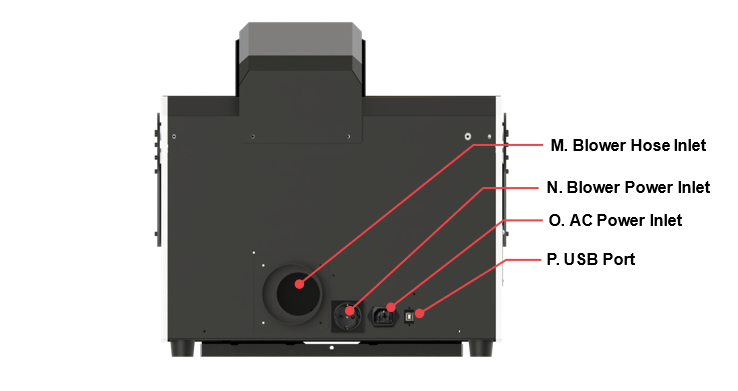

| M | Blower Hose Inlet | Connects the blower hose to the outlet to remove dusts and debris produced during marking operation |
| N | Blower Power Inlet | To supply power to the blower by connecting it to the machine <110~220V/2A> ※Auxiliary Power Device must be used if the external blower has more than 2 Ampere. |
| O | AC Power Inlet | To supply power to the machine ※Use a grounded outlet only. Do not plug the machine into an ungrounded outlet. |
| P | USB Port | To connect USB cable to PC |
