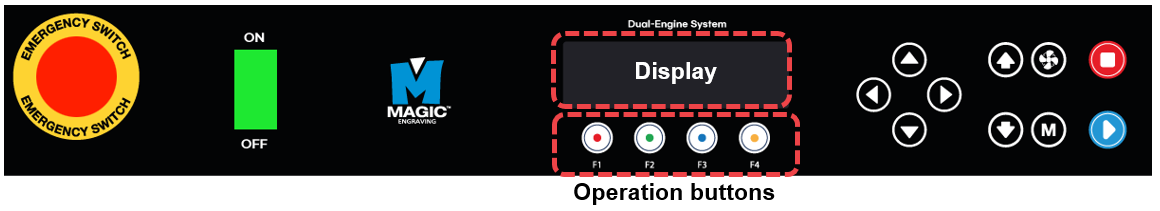

| Display | Status display | ||
| Operation Buttons | Activate the operations intended to perform | ||
 |
Direction Key (X,Y/A) |
Engraving area adjustment  (X) Moves X axis  (Y)(A) Moves Y/A axis ※Y-axis movement in flat mode, A-axis movement in rotary mode |
|
 |
 |
Direction Key (Z) | Moves Z axis up and down |
 |
Vacuum ON/OFF | Chip collector power button • Automatic control: The device starts automatically once the engraving operation begins and stops automatically once the engraving operation is completed. • Manual operation: Automatic control is deactivated if the device is manually switched on. Once the engraving operation is completed, the device should be manually turned off. ※ We strictly advise our users to use the Chip collector during engraving operation for safety. The Chip collector prevents exposure form harmful inhalable particles and debris like metal chips and dusts which may cause eye injury if they get stuck in the eye or respiratory problems if inhaled. |
|
 |
Menu | Enter the menu mode | |
 |
Start | Start marking button • Start marking: Long-press (for 2 seconds) the [START] button to start marking. • Repeat marking: Press the [START] button to finish marking, then double-press (tap twice) the [START] button to repeat marking. • Menu: Press OK when using the menu. |
|
 |
Stop | Stops/cancels marking | |
