※Anti-curling clamp is sold separately.

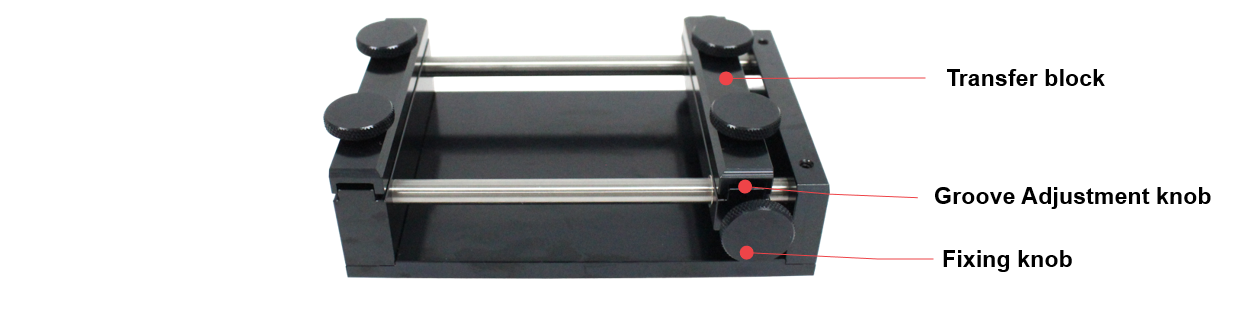

The anti-curling clamp is used to hold thin plates in place. It is used when laser cutting sheet materials.
1. Set the position of the transfer block according to the size of the material, and secure it using the transfer block fixing knob.

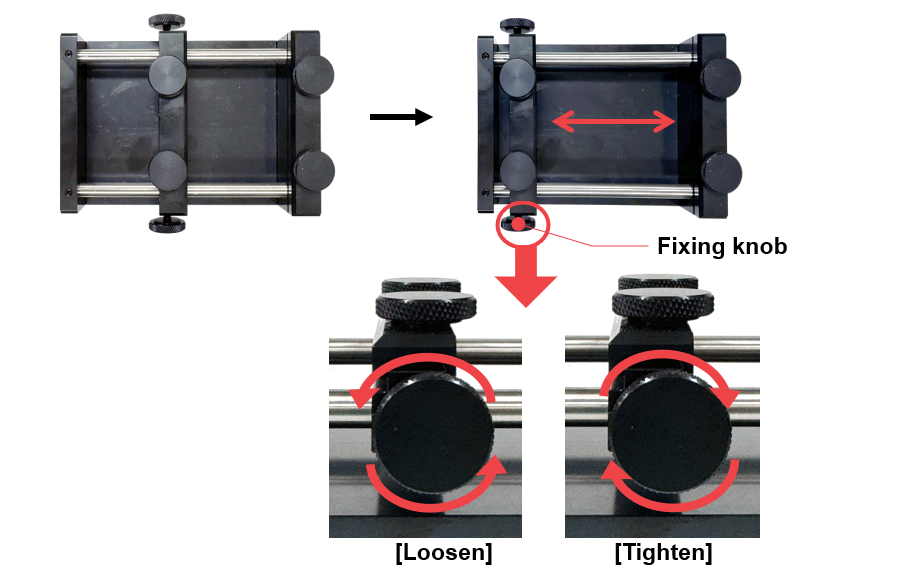

2. Turn the fixing knob to widen the gap of the clamp.
[Loosen] Releases the transfer block.
[Tighten] Adjusts the transfer block position and secures it.

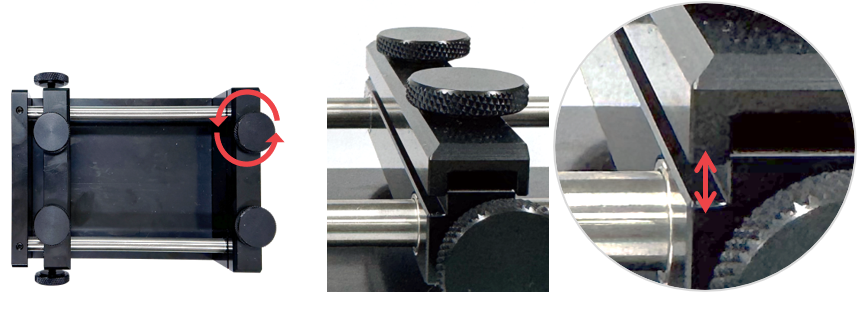

3. Turn the groove adjustment knob to the left to loosen the groove of the clamp.

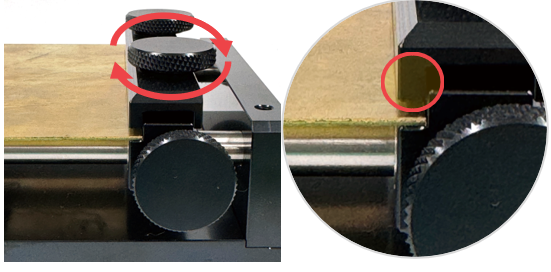

4. Place and secure the material to mark. Turn the groove adjustment knob to the right to fasten the groove of the clamp.

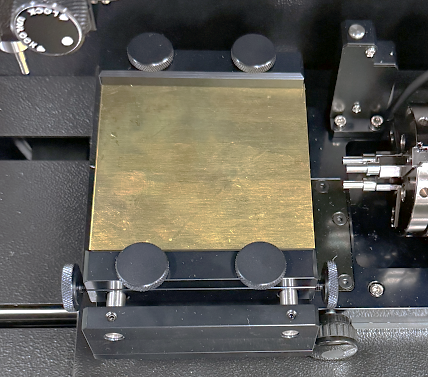

5. Before using the anti-curling clamp, remove the multipurpose clamp. Slide the anti-curling clamp along the X-axis to the desired position, then secure it using the clamp fastening knob.
