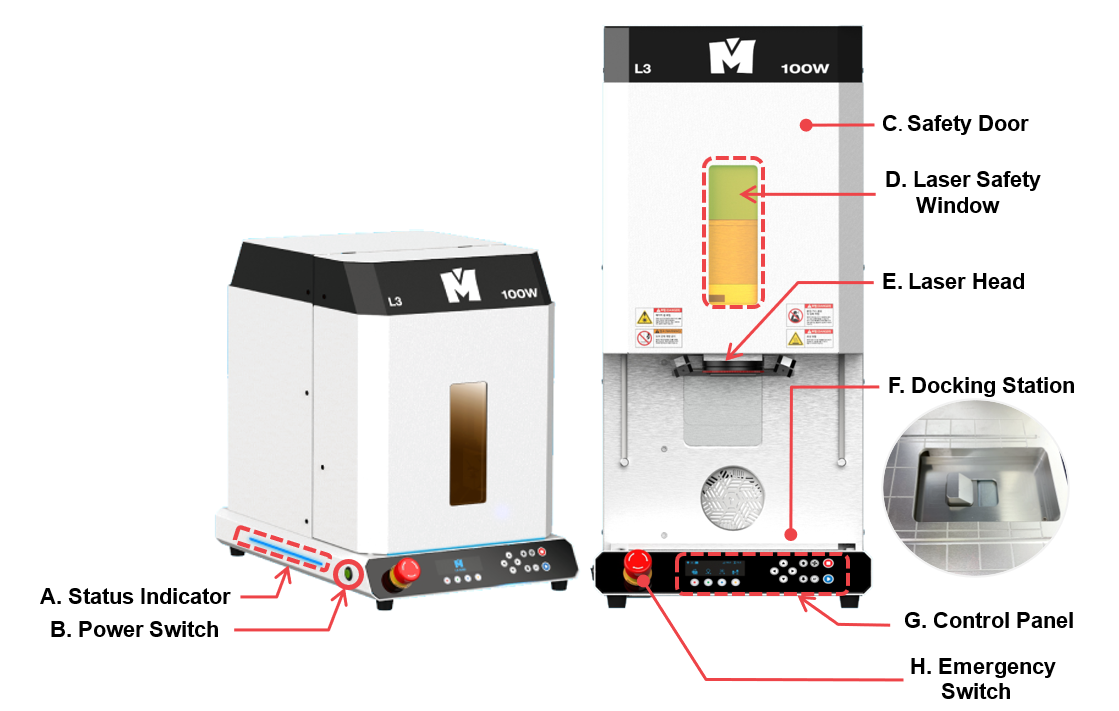

¶ Machine
¶ Clamp
※Work area: 110x110(mm)
※The grid guide lines can be used to check the position of workpiece on the work area.
[How to use the clamp]
Place your material on the center of the work area.
※The grid guide lines on the work area appear similar to MagicEngrave grid guide lines on the screen.
- 1. Clamp Descriptions for the clamp
- 2. Medal Clamp Descriptions for the medal clamp
- 3. Medal Clamp(center fixing type) Descriptions for the Medal clamp(center fixing type)
- 4. L Type Clamp Descriptions for the L Type clamp
- 5. Honeycomb Table Descriptions for the Honeycomb table
- 6. Rotary Clamp Descriptions for the rotary clamp
- 7. Anti-curling Clamp Descriptions for the Anti-curling clamp
- 8. Bangle Clamp Descriptions for the bangle clamp
¶ Keypad
¶ Display
The display shows the status, functions, mode, and check messages. Icons are displayed differently depending on the selected function. The four buttons at the bottom represent different functions and each function vary depending on the selected mode.
