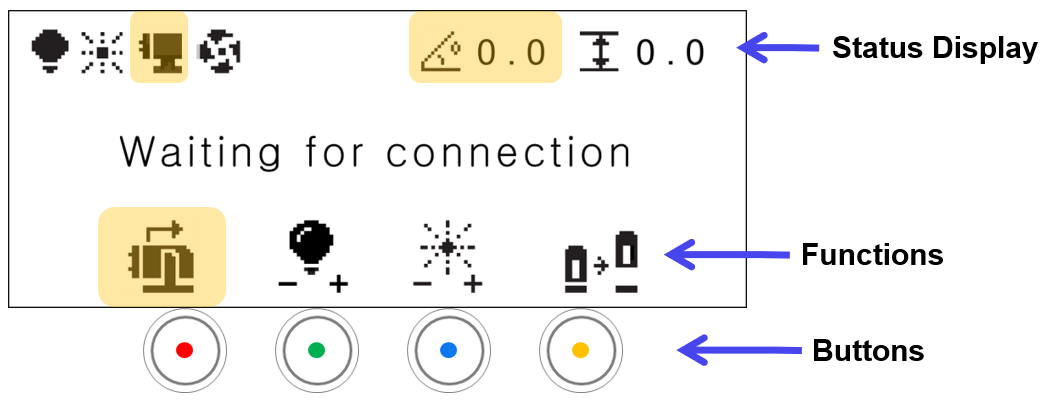

| Status Display |  |
Rotary Clamp | Displays rotary clamp mounting |
 |
Angle | Displays tilting angle | |

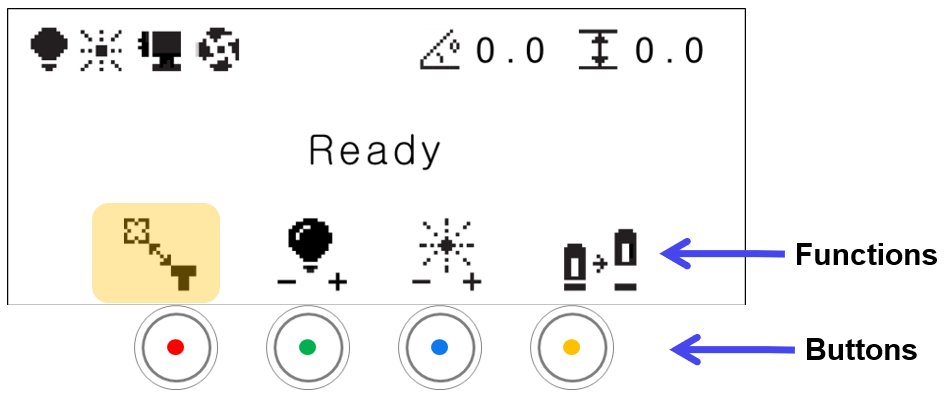

| Functions |  |
Rotary Clamp | Rotary clamp release button |
 |
X-axis/Tilting | When checking the rotary clamp marking area • Moves when tilting axis is active. • When the X-axis is activated, the position moves in the X-axis direction. |
