※L type clamp is sold separately.

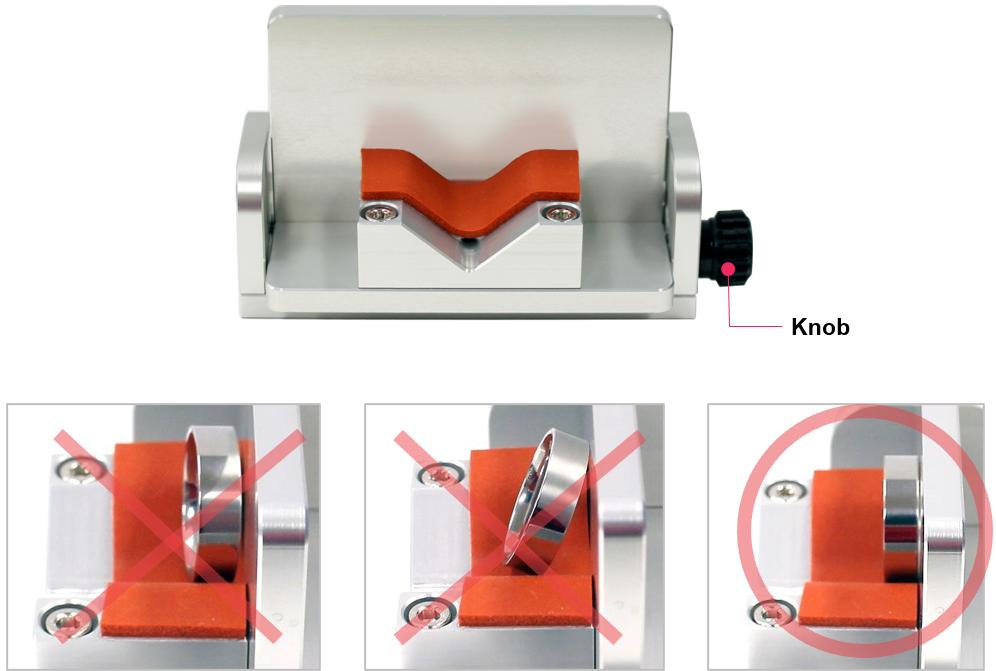

Set the material against the fixing bracket. Be sure to place it properly.
¶ Origin Point Setting
Set and position the L type clamp right at the center of the work area. The final alignment becomes the origin point of the L type clamp. Once the origin point is set, it is easy to return the L type clamp to its original position even after removal. If the vertical clamp is removed, the origin point must be set again.
- Set and align the clamps at the center of the work area then secure them.
- Set and secure the L type clamp to the work area. Be sure to set the L type clamp against the vertical clamp and secure it tightly.
- Set the focus using the direction key (Z)
buttons.
- Once the focus is set, check whether the L type clamp is properly set or not. Adjust the position of the L type clamp if the focus is not properly set at the center.
- Secure the vertical clamp.
¶ Material Focus Setting
- Place the material properly on the clamp.
- Set the focus using the direction key (Z) buttons.
