※Anti-curling clamp is sold separately.

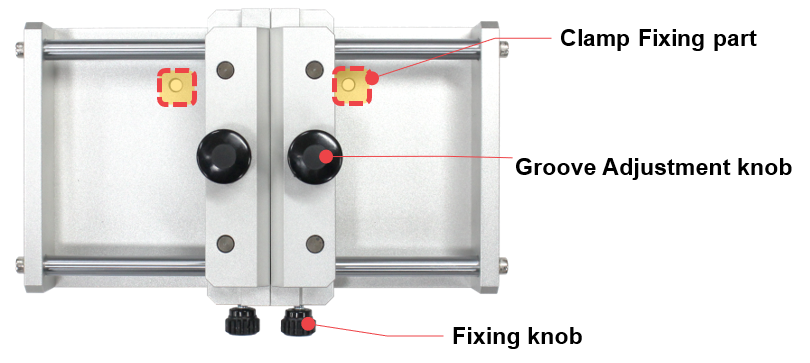

Anti-curling clamp is used for holding thin plates in place.
- Insert the pins into the holes to secure the anti-curling clamp on the work area.
- Connect the anti-curling clamp to the pins attached to the work area.

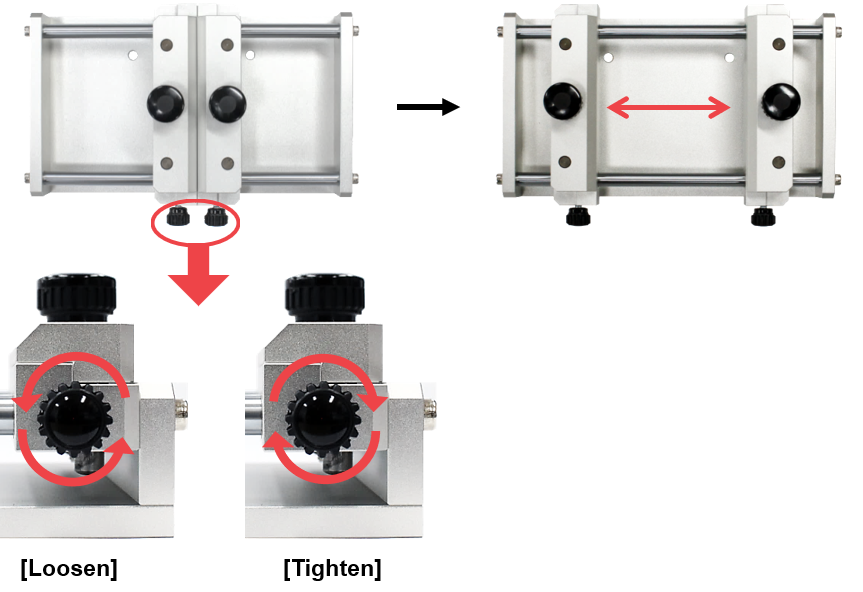

- Turn the fixing knob to widen the gap of the clamp.
- Turn the groove adjustment knob to the left to loosen the groove of the clamp.
- Place and secure the material to mark. Turn the groove adjustment knob to the right to fasten the groove of the clamp.
