※The machine is initially set up at the factory. Please contact your reseller first before making any changes to the settings of the machine.
※ Calibrate the machine in the following order: Laser focus calibration – Guide laser calibration – Focus pointer –Correction – Rotary origin calibration (if in use) – Camera.

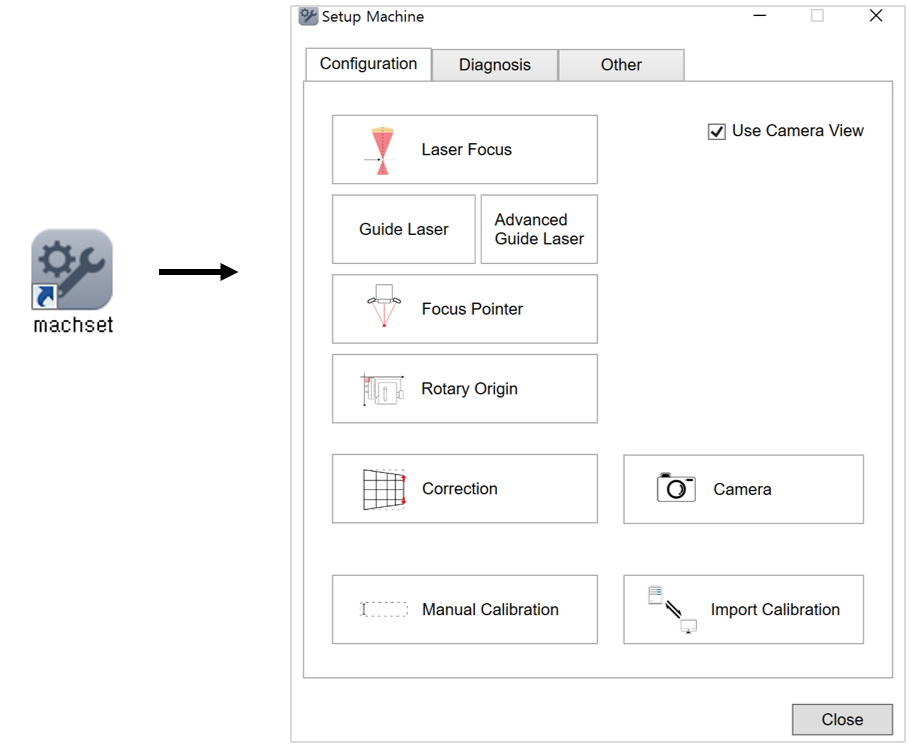

※ A separate program for Setup Machine is provided. Run the program first to calibrate the machine.
※Use appropriate material for calibration. The machine’s warranty service does not cover mishandling of the machine resulting in damage or failure.
※ Use a black anodized aluminum material.
- 1. Use camera view
- 2. Laser focus calibration
- 3. Guide laser calibration
- 4. Focus pointer
- 5. Rotary origin
- 6. Correction
- 7. Camera
- 8. Manual calibration
- 9. Import calibration
