¶ Package Contents
MAGIC™-S7 provides the following tools and devices. The contents of the package may vary if optional items are purchased.
Take note:
*Cutter, tip and spindle belts easily wear out. Make sure to replace them regularly or as per maintenance schedule.
*All pictures shown are for illustration purpose only. Images may differ from the actual products.
*Be sure to use a safety mask and safety glasses to avoid injury during machine operation.
|
Name |
Picture |
Qty |
Usage |
|

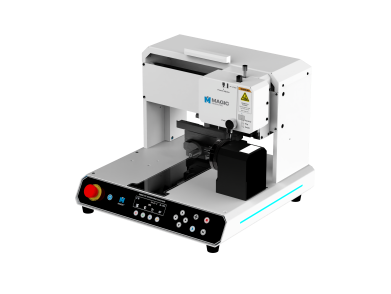

MAGIC™-S7 |
 |
1EA |
Marking machine ※Be sure to use a safety mask and safety goggles during machine operation for safety. |
|
Power adapter (CP-01& CP-02) |
 |
1EA |
Power supply ※Use a grounded outlet only. Do not plug the machine into an ungrounded outlet. |
|
USB Cable (CP-11) |
 |
1EA |
For connecting to PC |
|
Program Installation USB |
 |
1EA |
To install MagicEngrave software ※See program installation for further details. |
|
User Manual |
 |
1EA |
Operating manual |
|
T-wrench (2.5mm) (CP-T25) |
 |
1EA |
For tightening/unscrewing the bolt. |
|
L-wrench (1.5mm) |
 |
1EA |
For tightening/replacement of bolt. |
|
Ruler (CP-24) |
 |
1EA |
For measuring the material. |
|
Tool fixing bolt (M5x6) |
 |
3EA |
To fasten the spindle tool. |
|
L-tool fixing bolt (M3x4) |
 |
3EA |
To fasten the L-tool tip. |
|
Diamond tip(4Ø) (T40-DA22) |
 |
1EA |
For spindle: Tool used for engraving. |
|
Diamond tip(3Ø) (T31-DA09) |
 |
1EA |
For L-tool: Tool used for engraving the inside of a ring. |
|
Bakelite plate (120x100x2t) |
 |
1EA |
For calibrating the camera. |
|
Multi-performance Clamp (CP-250) |
 |
1EA |
To hold materials with different shapes in place. |
|
Pin (CP-172) |
 |
6EA |
To hold materials with irregular shapes in place. |
|
Height adjustable clamp (CP-252) |
 |
1EA |
To adjust the height of the clamp. |
|
Finger chuck handle (CP-31) |
 |
2EA |
To fasten the rotary clamp. |
|
Flat finger chuck (CP-38) |
 |
3EA |
For holding rings in place when engraving the inside or outside. |
|
Round finger chuck (wide width) (CP-39) |
 |
3EA |
For holding rings in place when engraving the inside or outside. |
|
Finger Skin (CP-41) |
 |
1SET |
For protecting finger chuck. |
|
Finger Chuck Spanner (CP-21) |
 |
1EA |
For tightening/unscrewing the finger chuck. |
¶ Optional
*Purchased separately
|
Name |
Picture |
Qty |
Usage |
|
Back Cover (CP-253) |
 |
1SET |
Back Port Cover |
|
Front cover |
 |
1SET |
To prevent inhaling of dusts and scattering of chips produced during engraving process. |
|
Spacer block (CP-250S) |
 |
1SET |
To adjust the height of the clamp. |
|
Tailstock (CP-251) |
 |
1EA |
Attached to the head: To protect tools and to cut at specific depth. |
|
Pin clamp (CP-80) |
 |
1SET |
To hold materials with different shapes in place. |
|
Cutlery clamp (CP-83) |
 |
1SET |
To firmly hold spoons in place. |
|
Watch adapter (CP-84) |
 |
1SET |
To firmly hold watch in place. |
|
Bracelet adapter (CP-85) |
 |
1SET |
To firmly hold bracelets in place. |
|
Bar necklace adapter (CP-166) |
 |
1SET |
Jig for holding materials with narrow width (about 2-3mm) in place. (Used for securing pendants, bar necklaces, etc.) |
|
Curved tag adapter (CP-182) |
 |
1SET |
Jig for holding curved materials in place. (Used for securing curved pendants, chain bracelets, etc.) |
|
Round chuck finger (Narrow width) |
 |
3EA |
For holding rings in place when engraving on the inside. |
※All pictures shown are for illustration purposes only. Images may differ from the actual products.
