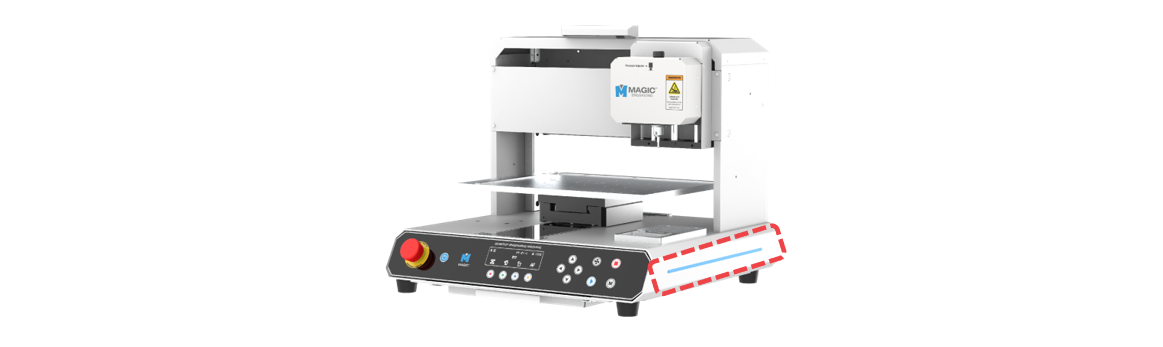

The status indicator is placed at the bottom left side and bottom right side of the machine. It is used to indicate the status of the device.
The machine displays flashing or blinking lights to show its current status. The lights displayed indicate the following status:
| Status | Blinking Interval |
| Waiting |  |
| Engraving | |
| Operating |  |
| Notification |  |
| Error |  |
Press
button (for 2 seconds) to enter menu mode.
Select [5. Adjust Brightness] then press
button.
| 5. Adjust Brightness | 1. Status LED | Adjusts status LED brightness |
| 2. Inside LED | Adjusts inside LED brightness | |
| 3. Pointer | Adjusts focus laser pointer brightness |
Select [1. Status LED] then press button.
Adjust the brightness using the
(Direction X) buttons.
