Protect your hands, wrists and fingers.
Do not put any of your body parts inside the machine or anywhere near the head during operation.
| A | Camera | Shows actual view of material to design. |
| B | Spindle | Secures the tool for engraving. ※To change tools, use a 2.5mm T-wrench. |
| C | Probe | Measures the height of the engraving material. |
| D | Status Indicator | Shows the status of the device via blinking interval |
| E | Control Panel | Controls the power button and the manual control for regulating engraving operations. |
| F | Emergency Switch | Stops the machine during emergency. |
| G | Power Switch | Switches the power on/off. |

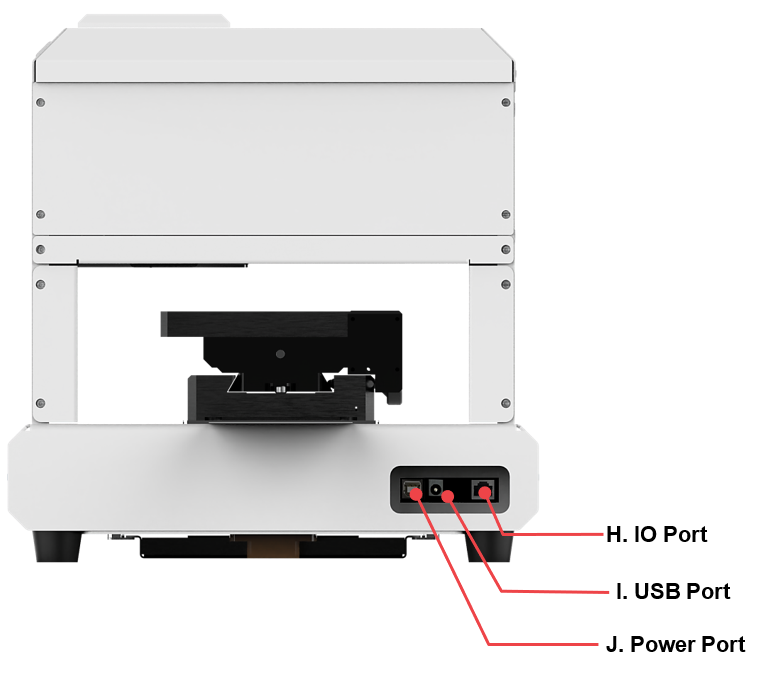

| H | IO Port | To connect the dust connector. |
| I | USB Port | To connect USB cable to PC. |
| J | Power Port | To connect power adapter to supply power to the machine. ※Use a grounded outlet only. Do not plug the machine into an ungrounded outlet. |
