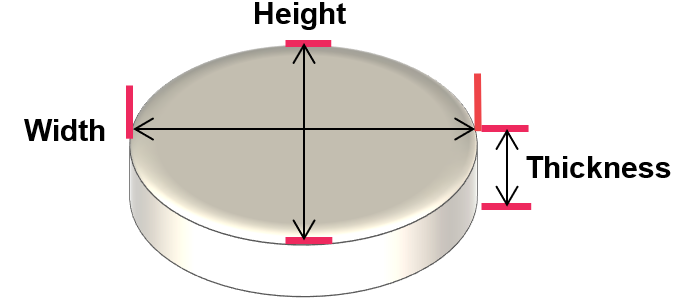

- Measure the size and height of your material.
- Place your material on the work area and set the laser focus using the direction key (Z)
buttons.
✽Also set the laser focus when using auto focus.

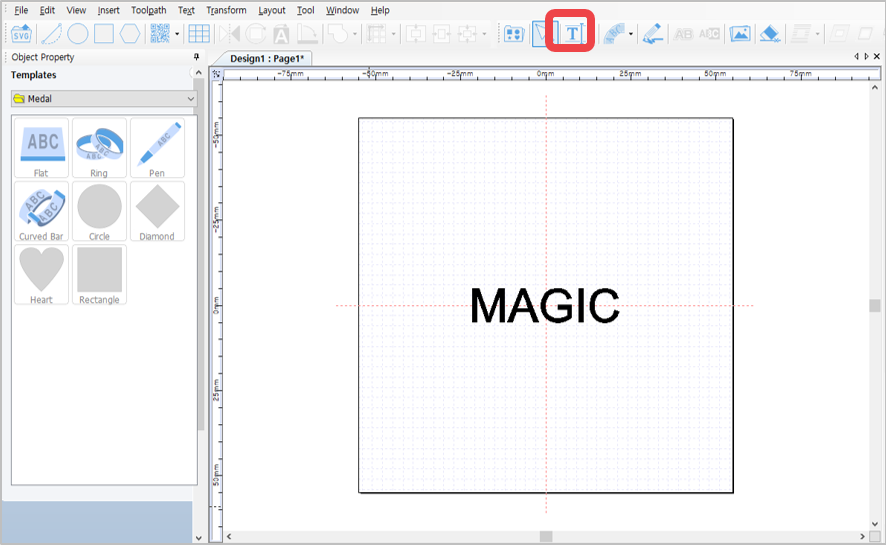

- Create your text design by clicking
[Text input] button on the toolbar. Move your mouse and click at any target location on the work area to enter text.

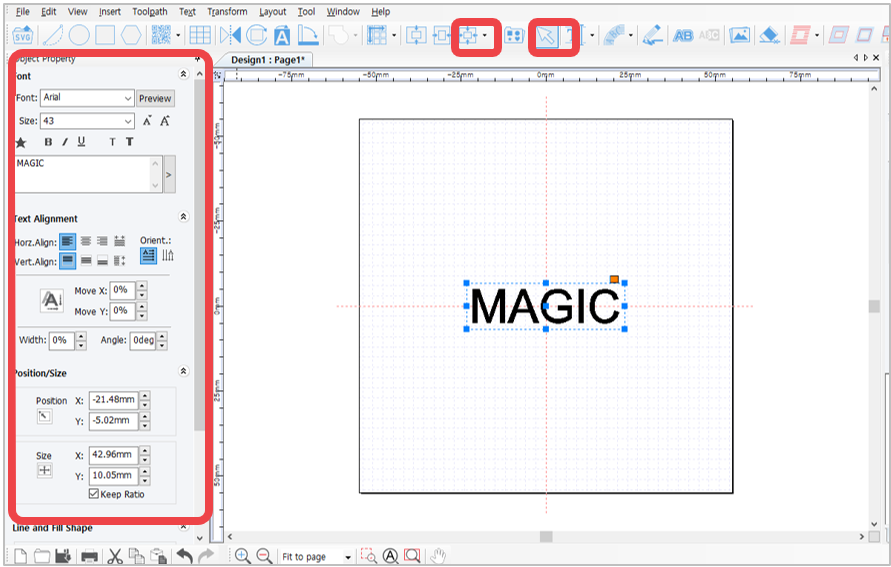

- Edit the size, font and thickness of your text by clicking
[Selection] button on the toolbar. To position your text in the center, click
[Center in Page] button.

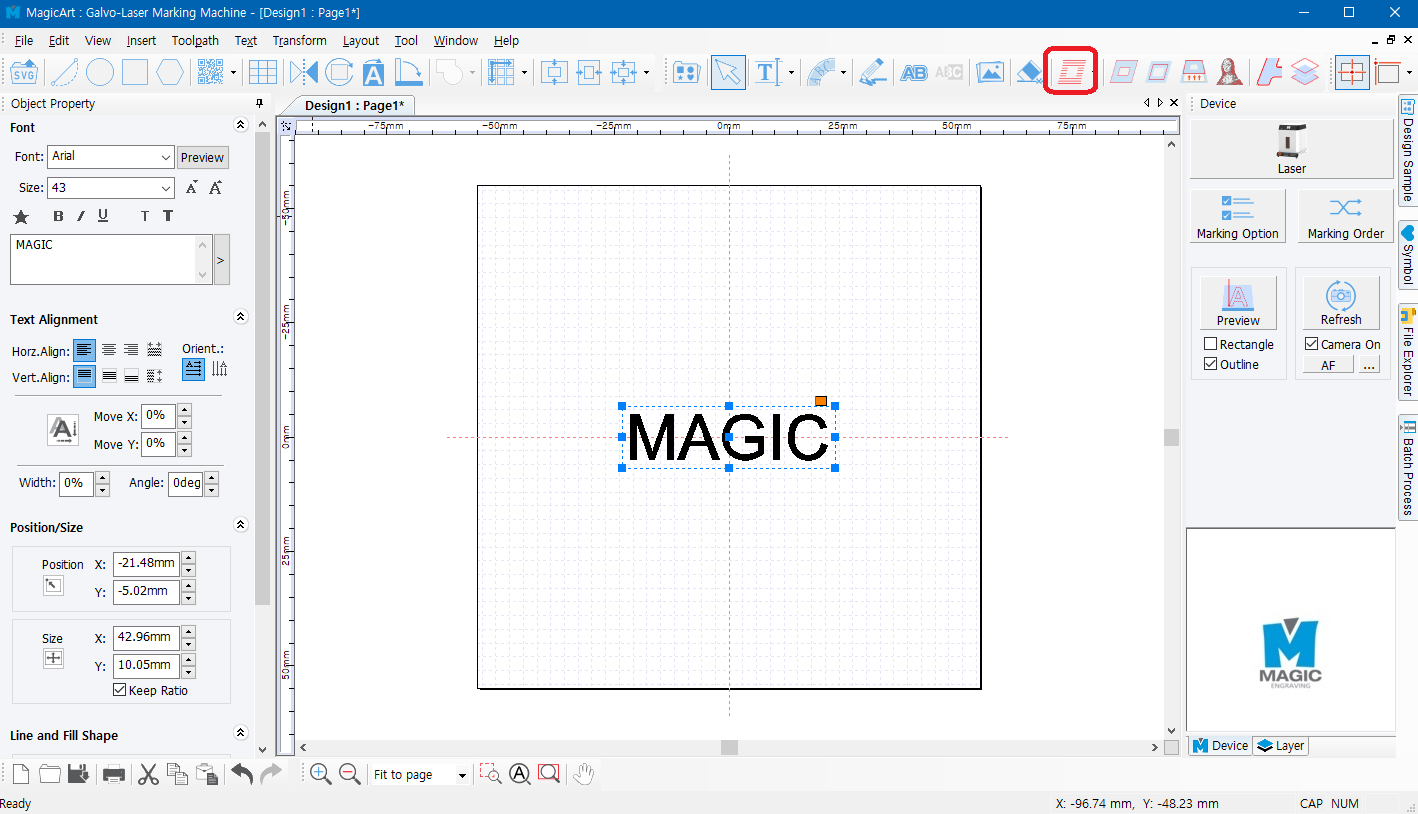

- Upon completing the text design, click
[Scanned Line Toolpath] button.
✽ Click
button on the top right of the screen for immediate marking without creating a Toolpath.

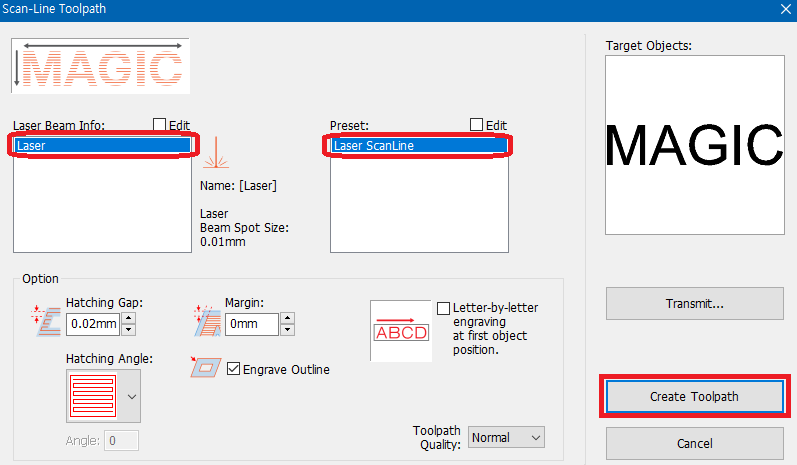

6. Select a marking option in the Toolpath window. Specify the hatching interval (if necessary), then click [Create Toolpath].

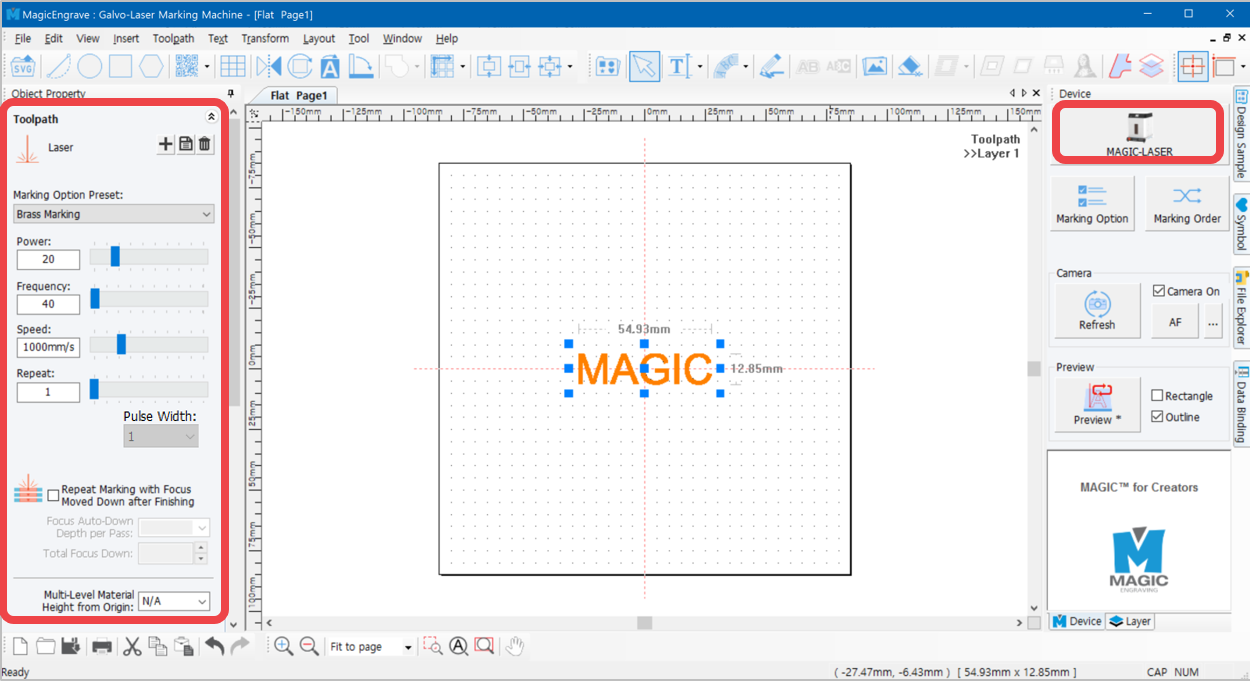

- After creating the toolpath, set the laser marking option then click button to start marking.
- Once the tool is positioned to the center of the material and the laser pointer turns on, use the direction key buttons to position the laser pointer to the marking area.
The area that the laser pointer points to is where the actual marking takes place.
The round laser pointer in the middle represents the origin of the height of laser focus.
 |
Whenever the direction key is pressed, the laser pointer moves up/down/left/right, showing a marking area.
Check if the marking zone is matched with the area on the material to be actually marked. If unmatched, adjust the position, using the direction keys. The laser pointer automatically points to the area where marking takes place (based on the target location on the work area). When the direction key is pressed, the laser pointer moves to the area to be marked (left, top, right or bottom) from its target location. If the marking area needs to be adjusted to the left, press  key to move the pointer to the left.
 |
- After positioning the laser pointer and determining the location of the marking area, click [Start] button on the program or long-press [
] button on the machine (for more than 2 seconds) until the cover closes and the marking process begins.
· Repeat marking: Press and hold button to complete marking, then double-click button to repeat marking on the same material.
