[System requirements]
-Supported devices: PC
-Operating system: Windows 10 or higher
-Processor: Intel® Pentium® CPU or higher
-Memory: 4GB or more
[How to install the software]
1. Insert the USB into your computer`s USB port. A notification will pop-up on your screen regarding installation. ※USB is included in the package.
2. Follow the instructions below to install the software.
3. Follow the steps in order until installation is complete.
4. In case program installation won’t automatically run upon inserting the USB into your computer, go to My Computer’s USB drive then run Install program.

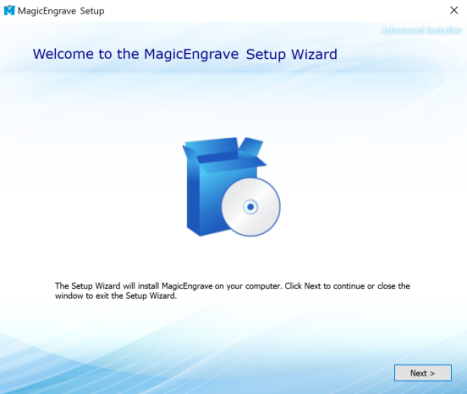

| 1. Setup wizard. |
 |

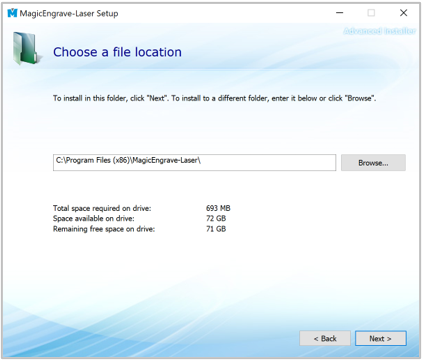

| 2. Select installation folder. |
 |

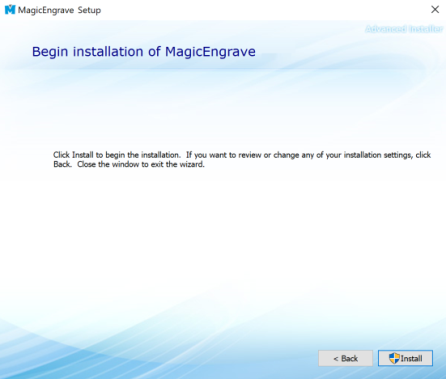

| 3. Confirm installation. |
 |

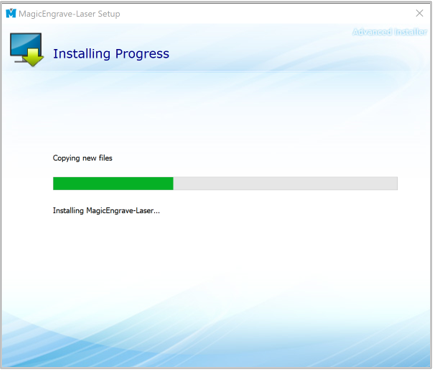

| 4. The file is copied onto the hard disk. |
 |

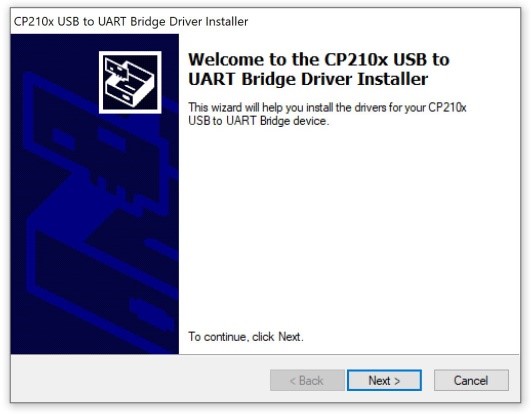

| 5. USB driver setup wizard. |
 |

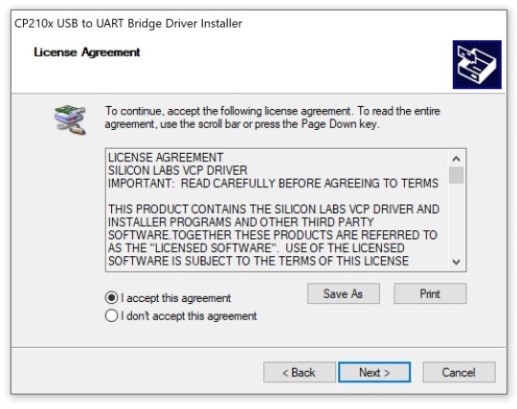

| 6. Check [I accept the agreement], then click [Next]. |
 |

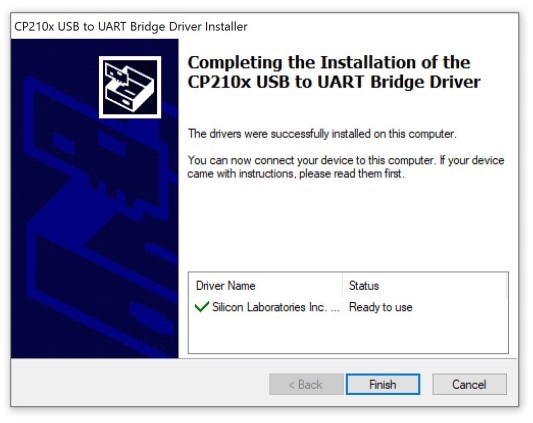

| 7. Check [Status: Ready to use], then click [Finish]. |
 |

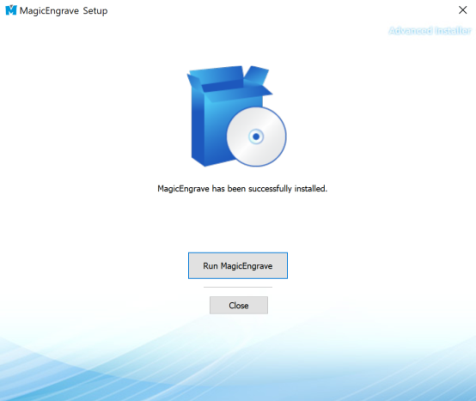

| 8. Click “Run MagicEngrave” button to complete program installation. |
 |
- Program Description
Once the installation is completed, the following icon will appear on your desktop. The description of the icon is as follows:
 |
As a design & marking software program, it features the following functions: marking design, marking option, Toolpath setting, transfer of Toolpath data. |
 |
As a machine setting program, It features the following functions: Laser focus, Guide laser, Rotary origin, Manual calibration. |

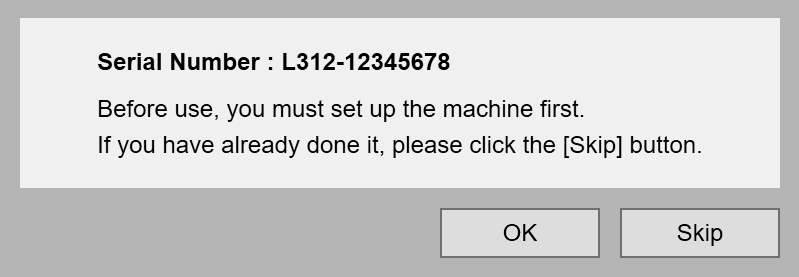

- Program serial number
After installation, the machine’s serial number is recognized and the stored set values in the server is automatically recalled and set.
-Click [OK] button to run set up automatically then the program automatically reconnects once setup is completed.
-Click [Skip] button to skip this process and the setting value will not be set automatically.

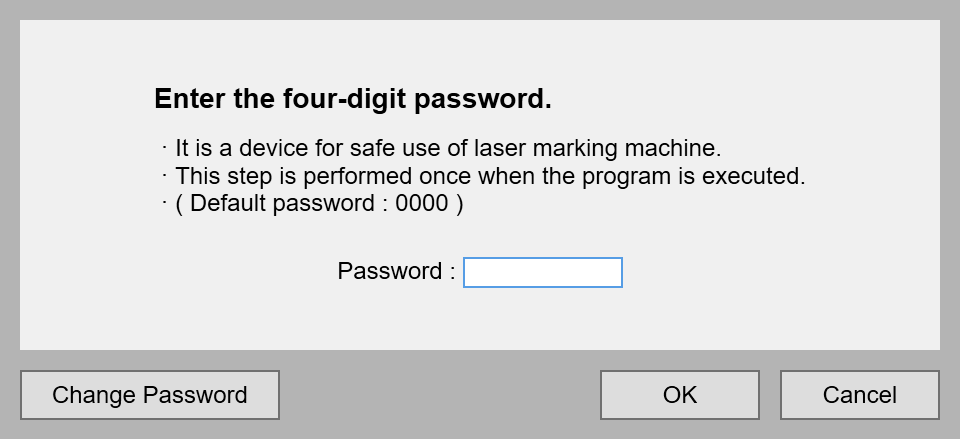

- Program password
Only administrators can use the program by using the program password.
Please make sure to change the default password.
The program default password is [0000].
