※Blower box set is sold separately.
※Be careful when using the hose clamp as its edges are sharp and may cause cuts.
※Using a dust collector or blower rated over 2A may cause machine malfunction. Do not connect or use products that exceed 2A.
| Blower box (LMC-200) |
 |
1EA | Exhaust for dust & smoke. |
| Blower Hose(100Ø) (LMB-09-100) |
 |
2EA | Blower connection hose (2.5M) |
| Hose clamp(4inch) (LMB-10-4) |
 |
3EA | For connecting to blower and hose. ※ Please be careful of the cut surface of the hose clamp as it may cause injury. |

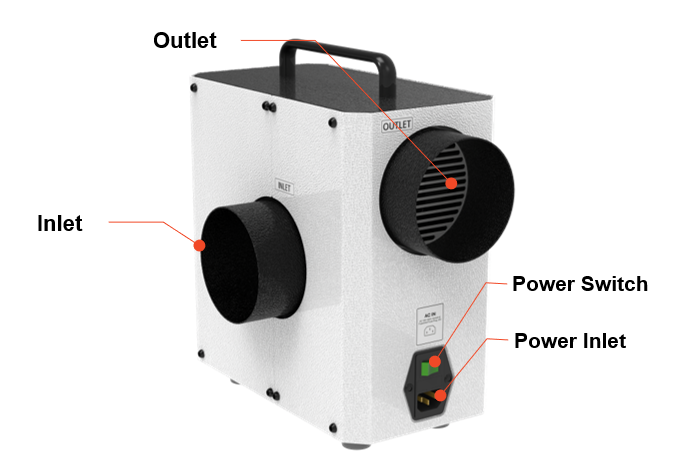

| Inlet | Connects to the duct hose to remove dust generated during processing. |
| Outlet | Connects to the duct hose to discharge dust after collection. |
| Power Switch | Turns the blower ON/OFF. |
| Power Inlet | Connects the blower to the power source. |

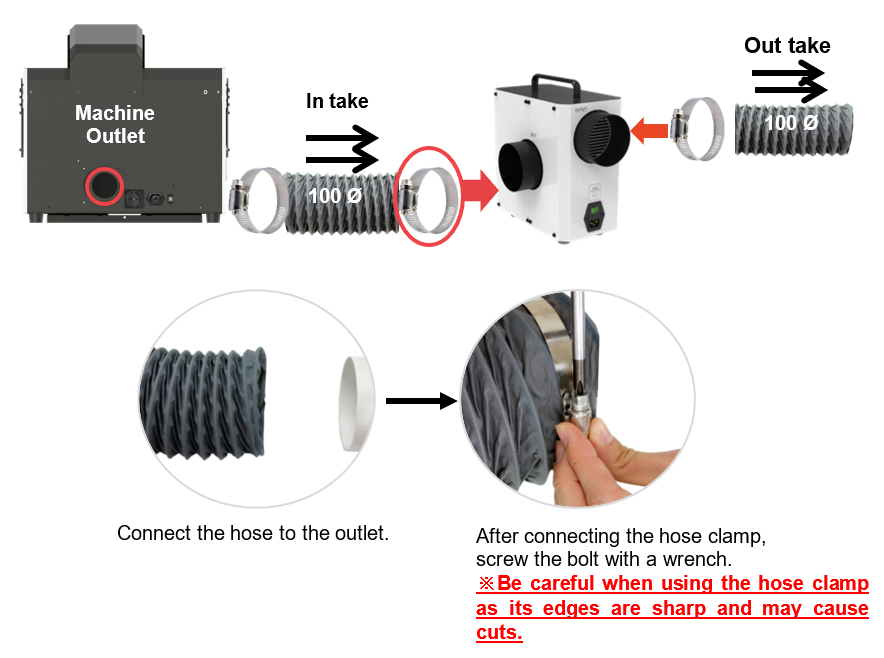

¶ How to install the blower box
