¶ Package Contents
JANUS provides the following tools and devices. The contents of the package may vary if optional items are purchased.
Take note:
*Make sure to replace laser source regularly or as per maintenance schedule.
*All pictures shown are for illustration purpose only. Images may differ from the actual products.
*Be sure to use a safety mask and safety glasses to avoid injury during machine operation.
|
Name |
Picture |
Qty |
Usage |
|

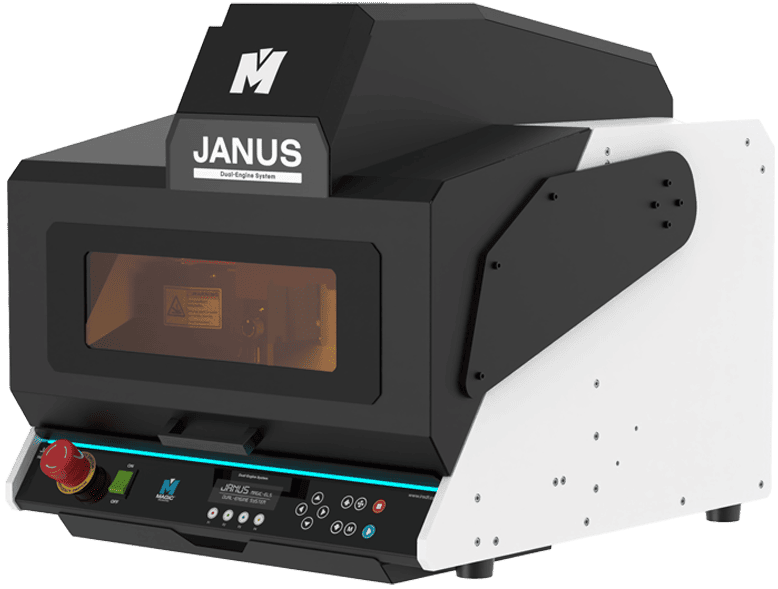

JANUS |
 |
1EA |
Laser & CNC dual machine |
|
Power Cable (CP-02) |
 |
1EA |
Power supply Do not plug the machine into an ungrounded outlet. |
|
USB Cable (CP-11) |
 |
1EA |
For connecting to PC |
|
Program Installation USB |
 |
1EA |
To install MagicEngrave software ※See program installation for further details. |
|
User Manual |
 |
1EA |
Operating manual |
|
T-wrench(2mm) (CP-T20) |
 |
1EA |
For tightening/unscrewing the bolt. |
|
L-wrench(3mm) (CP-L30) |
 |
1EA |
For setting the focus pointer and fixing the flat clamp guide. |
|
L-wrench (1.5mm) |
 |
1EA |
Tool for tightening/replacement of bolt. |
|
Ruler (CP-24) |
 |
1EA |
For measuring the material. |
|

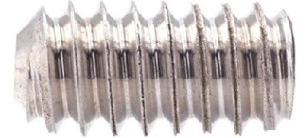

Tool fixing bolt (M4x5) |
 |
3EA |
To fasten the spindle tool. |
|
L-tool fixing bolt (M3x4) |
 |
3EA |
To fasten the L-tool tip. |
|
Diamond tip(4Ø) (T40-DA22) |
 |
1EA |
For spindle: Tool used for engraving. |
|
Endmill cutter(4Ø) (T40-E06) |
 |
2EA |
For spindle: Tool used for cutting. |
|
Spindle belt (60Ø/60mm) (CP-SB60) |
 |
3EA |
For transferring DC motor’s rotation power to spindle. |
|
Finger chuck handle (CP-31) |
 |
2EA |
To fasten the rotary clamp. |
|
Flat finger chuck (CP-32) |
 |
3EA |
For holding rings in place when engraving the inside or outside. |
|
Round finger chuck (Wide width) (CP-33) |
 |
3EA |
For holding rings in place when engraving the inside or outside. |
|
Round finger chuck (Narrow width) (CP-34) |
 |
3EA |
For holding rings in place when engraving on the inside. |
|
Finger Chuck (4mm) (LMC-05-4) |
 |
3EA |
For holding rings in place when marking the inside or outside. |
|
Finger Chuck (2mm) (LMC-05-2) |
 |
3EA |
For holding thin rings in place when marking the inside or outside. |
|
Finger Skin (CP-41) |
 |
1SET |
For protecting finger chuck. |
|
Finger Chuck Spanner (CP-21) |
 |
1EA |
For tightening/unscrewing the finger chuck. |
|
Multi- performance Clamp (CM-50) |
 |
1EA |
To hold materials with different shapes in place. |
|
Flat clamp (CM-51) |
 |
1EA |
Flat plate clamp for laser processing. (Includes guide and bolts) |
|
Cutting clamp (CM-52) |
 |
1EA |
To firmly hold materials in place during cutting process. |
|
Tray |
 |
1EA |
Multi-purpose tray. |
|
Cutting nose(4Ø) (CP-243N) |
 |
1EA |
Attached to the head: To protect tools and to cut at specific depth. |
¶ Optional
*Purchased separately
|
Name |
Picture |
Qty |
Usage |
|
Blower Box (LMC-200) |
 |
1SET |
Exhaust for dust & smoke. ※ Using a dust collector or blower rated over 2A may cause machine malfunction. |
|

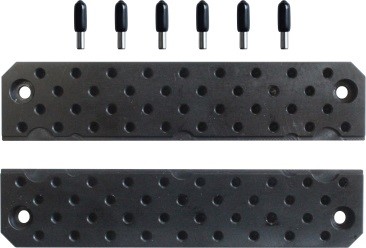

Pin clamp (CP-80) |
 |
1SET |
To hold materials with different shapes in place. |
|
Ring adapter (CP-241) |
 |
1SET |
For pen jig: To firmly hold rings in place when engraving the outside. |
|
Cutlery clamp (CP-83) |
 |
1SET |
To firmly hold spoons in place. |
|
Watch adapter (CP-84) |
 |
1SET |
To firmly hold watch in place. |
|
Bracelet adapter (CP-85) |
 |
1SET |
To firmly hold bracelets in place. |
|

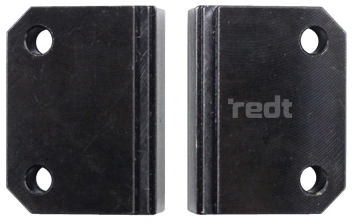

Bar necklace adapter (CP-166) |
 |
1SET |
Jig for holding materials with narrow width (about 2-3mm) in place. (Used for securing pendants, bar necklaces, etc.) |
|
Brick adapter (CP-167) |
 |
1SET |
To firmly hold brick in place. |
|
Brick adapter (Shallow type) (CP-167S) |
 |
1SET |
To firmly hold brick in place. |
|
Curved tag adapter (CP-182) |
 |
1SET |
Jig for holding curved materials in place. (Used for securing curved pendants, chain bracelets, etc.) |
|
Anti-Curling Clamp (CM-53) |
 |
1EA |
For holding a thin plate in place. |
|
Pen jig (CM-54) |
 |
1EA |
For holding pens in place. (Includes 1 × Ø8 mm (0.31 in) pin for installation) |
※All pictures shown are for illustration purposes only. Images may differ from the actual products.
