-Tailstock is sold separately.

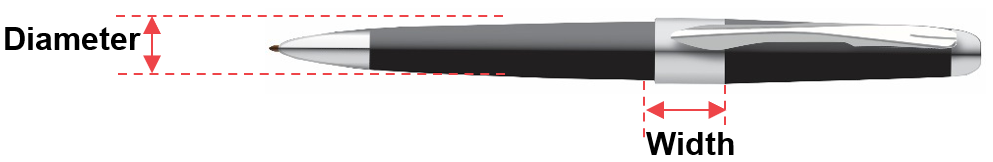

1. Measure the width and diameter of the pen.
2. Secure the pen to the engraver by using a pen jig.

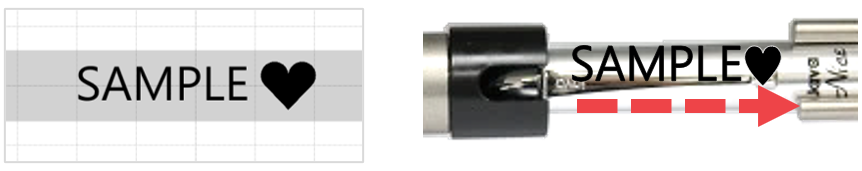

The pen jig may differ depending on model types. The instructions are almost the same for all types of engravers regardless of the type of jig used. Be sure to follow the instructions below to determine the correct positioning of the pen when engraving.

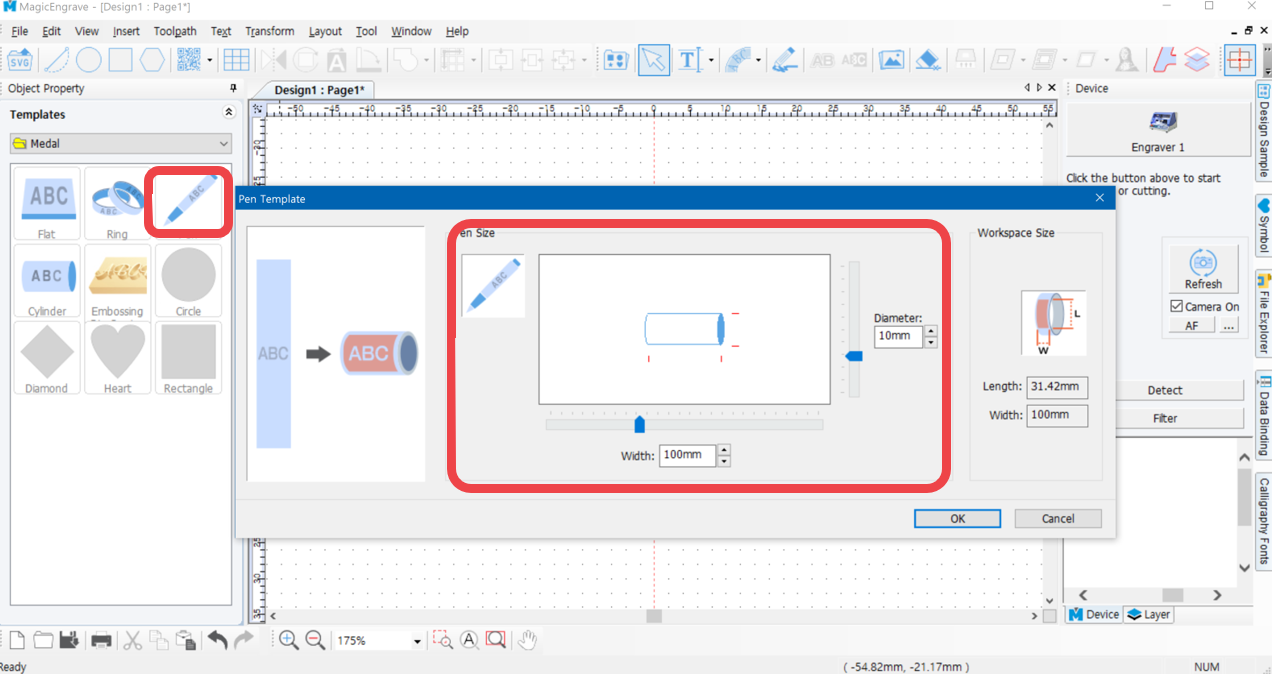

3. Select a pen template in the object property window. Enter the width and diameter of the pen then click “OK” button.

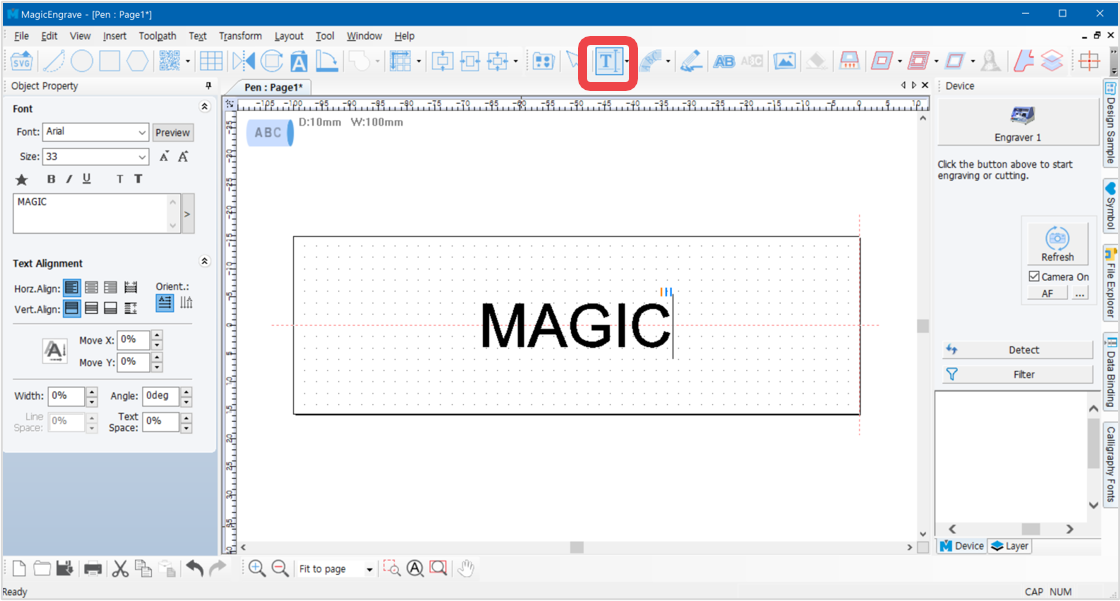

4. Once the template appears, click
[Text Input] on the toolbar. Click the work area then enter text.

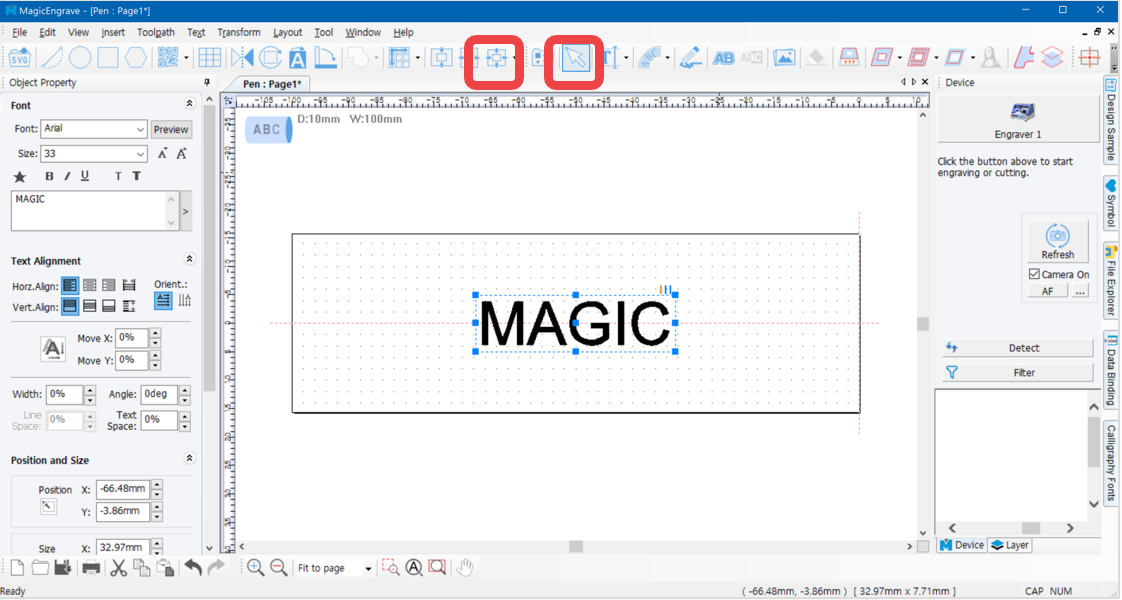

5. After entering the text, click
[Selection] on the toolbar to enter object selection mode, then adjust the size and font of the text. Click
[Center in Page] button to place the object at the center of the work area.

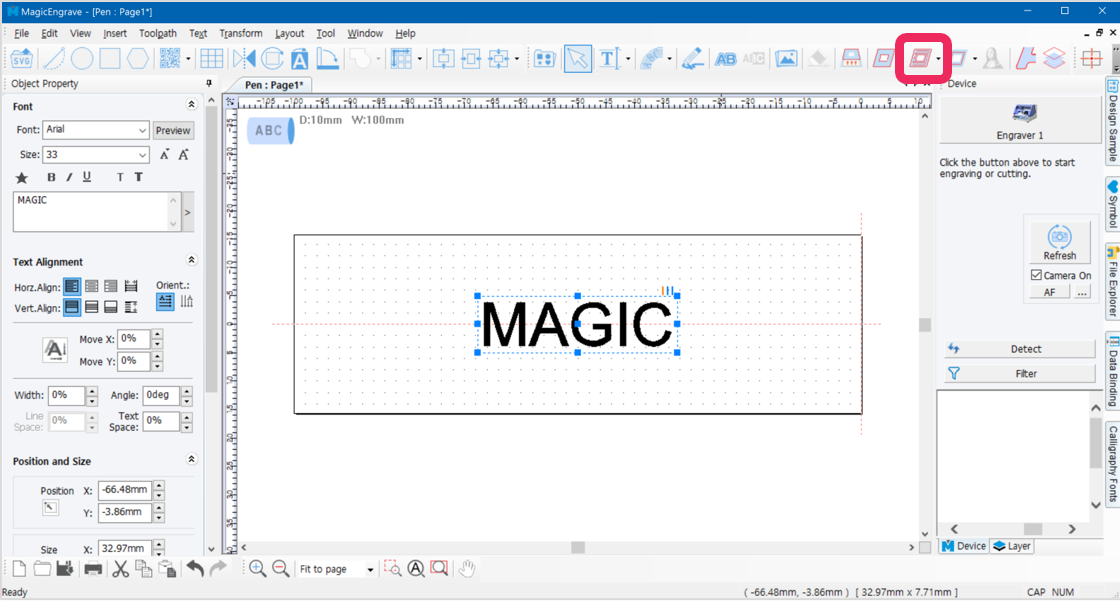

6. Upon completing the design, click
[Hatching Tool path].
✽Click
button on the top right of the screen for immediate marking without creating a Toolpath.

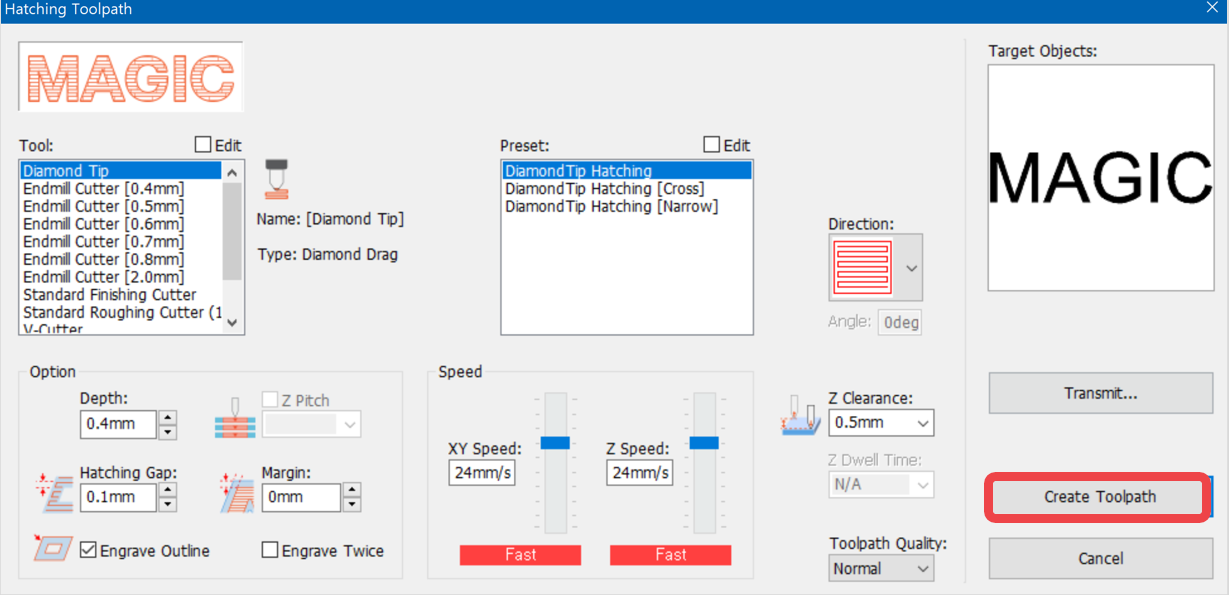

7. Select engraving option and tool from the “Hatching Toolpath” window. If necessary, designate the hatching gap and depth then click “Create Toolpath” button.

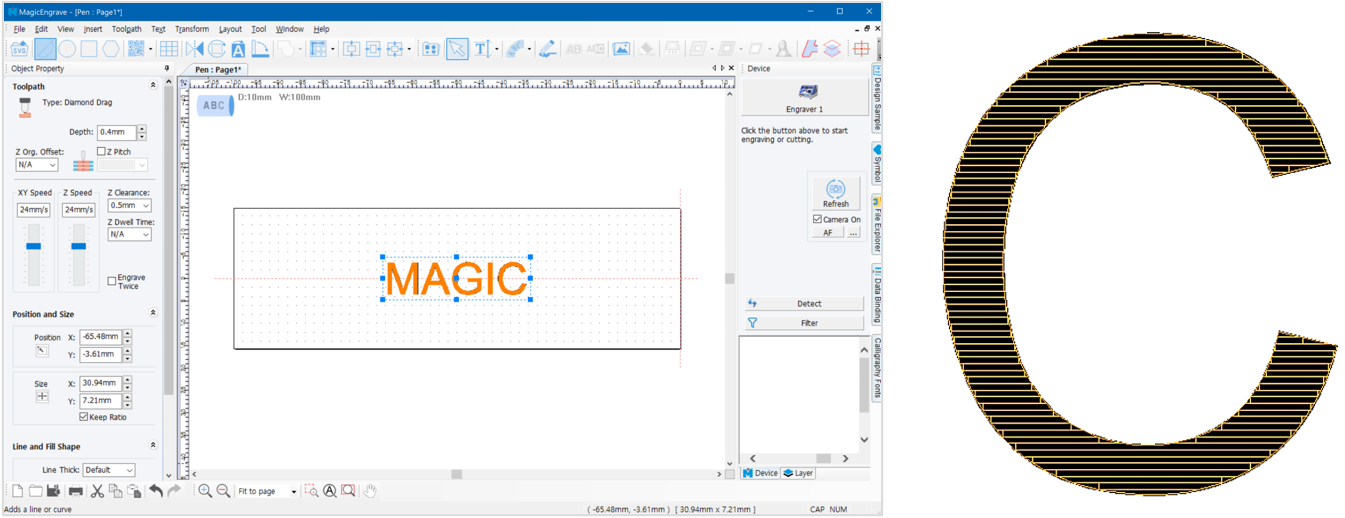

8. “Toolpath” object is created.

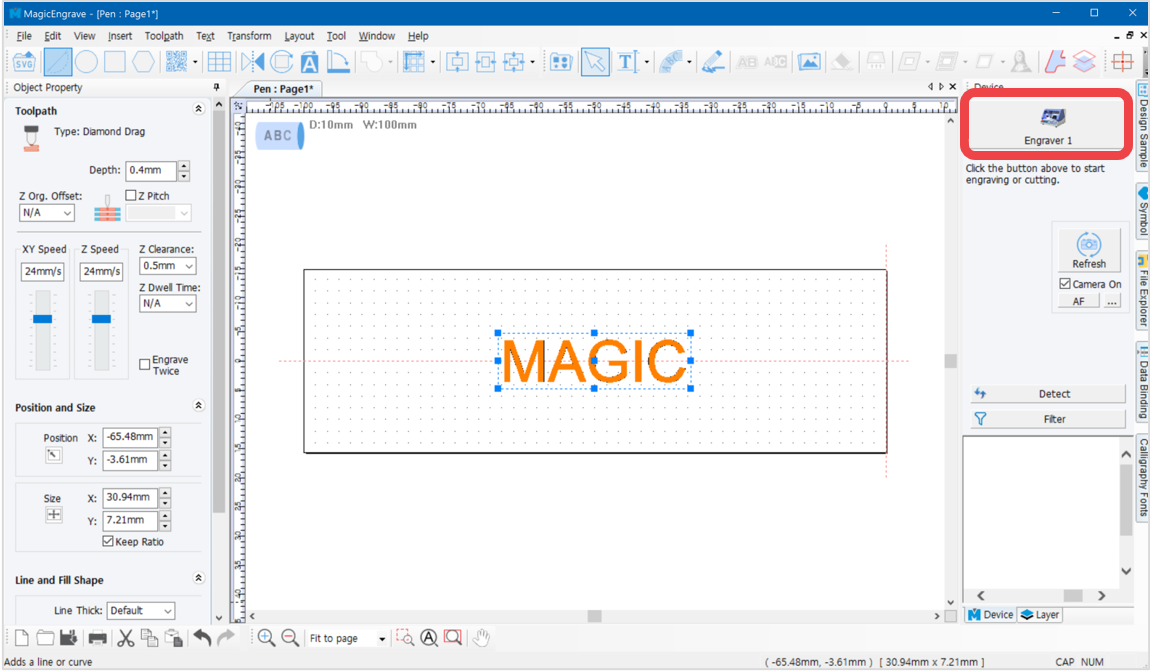

9. Click button.

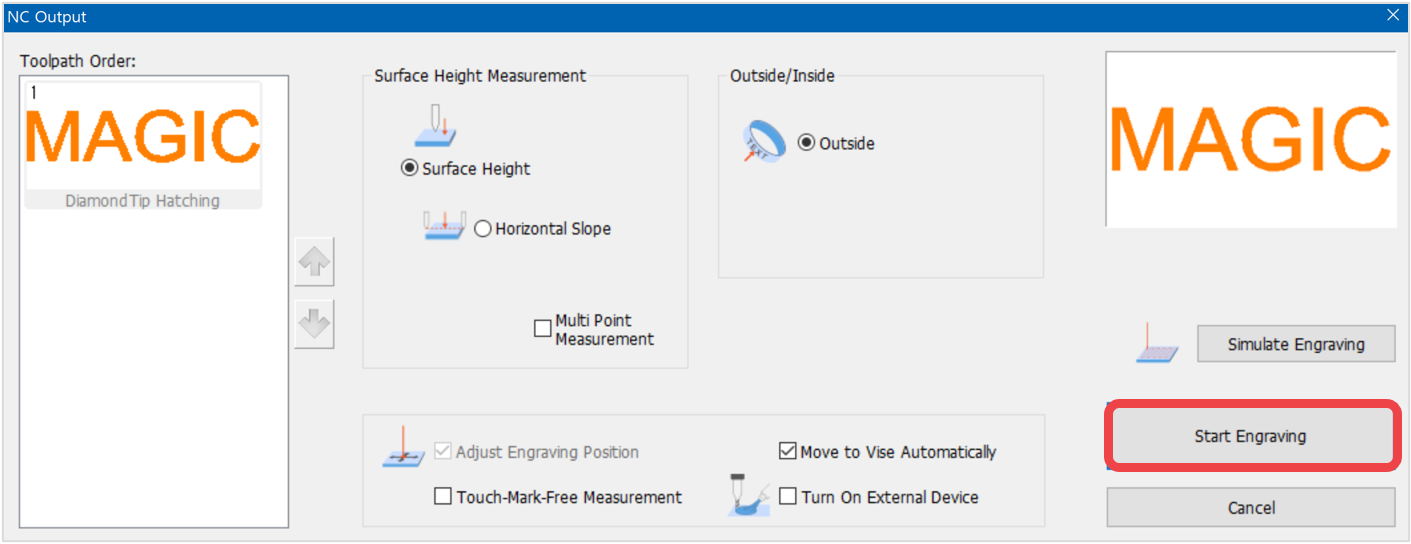

10. Once “NC Output” window appears, specify how the engraving material is measured then click “Start Engraving” button.
11. Once the tool is positioned to the center of the material and the laser pointer turns on, use the direction key buttons to position the laser pointer to the engraving area. The area that the laser pointer points to is where the actual engraving takes place.
 |
Press the direction key buttons to move the laser pointer to the left, top, right and bottom areas of the engraving area. (Long press to move the laser pointer farther). Check if the laser pointer points to the area on the material where you want to engrave. If the laser pointer is out of range, adjust the position using the direction keys. The laser pointer automatically points to the area where the engraving takes place (based on the target location on the work area). When the direction key is pressed, the laser pointer moves to the area to be engraved (left, top, right or bottom) from its target location. If the engraving area needs to be adjusted to the left, press  key to move the pointer to the left. |
12. After positioning the laser pointer and determining the location of the engraving area, long-press and hold
button (for more than 3 seconds) until it beeps to confirm that the machine is ready to engrave then close the cover.
· Repeat marking: Press and hold button to complete marking, then double-click button to repeat
marking on the same material.
