MAGIC™-E4 has built-in auto focusing systems that enable auto focusing on materials to be marked with a material height detection camera.
*Click the [AF] button to enable the camera auto-positioning function.
*Refocusing is required upon changing the material.
*Features become available once MagicEngrave program is enabled.
- Click [AF] on the program.
① Clamp moves to the center.
② Measure the height of the material
③ Tool moves to the right end of the machine
④ Software updates the camera image

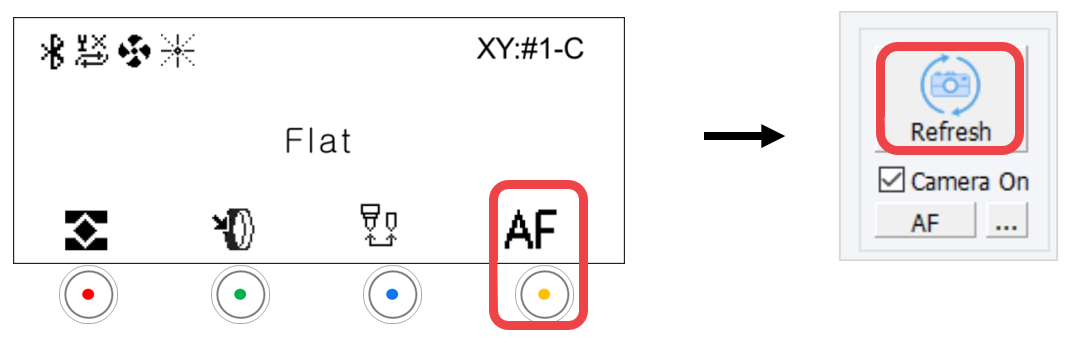

- Press the [AF] button on MAGIC™-E4 operation buttons then click the [Refresh] button on the program to refresh the camera display.
- To cancel autofocus, press
button on MAGIC™-E4 machine.
